Archstone

Archstone — connect your business to every AI

A compiler for AI capabilities. You describe what your business can do, once, in business terms. Archstone compiles that into tools an AI agent can discover and call — MCP today, other protocols as they arrive. Nobody hand-writes integration code.

Open source, Apache-2.0.

[Buy Me A Coffee]

See it work — 60 seconds, nothing to install

A capability compiled by Archstone is running live. Point Claude at it:

https://demo.archstone.dev/mcp

Open Claude (web, desktop or mobile) → Settings (or Customize) → Connectors → Add custom connector → paste the URL. Then ask about a trip — a destination, dates, a budget. Works on Free too (one custom connector is all this needs).

Prefer a terminal:

claude mcp add --transport http archstone-tourism https://demo.archstone.dev/mcp

The backend behind it is a plain HTTP service, and you can curl it directly — the same data the agent sees, deterministic so the shape is obvious:

curl -s -X POST https://demo.archstone.dev/v1/search \  -H "content-type: application/json" -d '{"destination":"Rome"}'

The entire integration that made this callable by an agent is 12 lines of business YAML — no HTTP, no JSON Schema, no MCP SDK. Everything else was generated.

Want the same in front of your own systems? Write to [email protected].

Start from an API you already have

Point archstone init at an OpenAPI document. It reads the spec, asks you the questions no document can answer, runs the real compiler over what it drafted, and writes nothing at all if that does not compile.

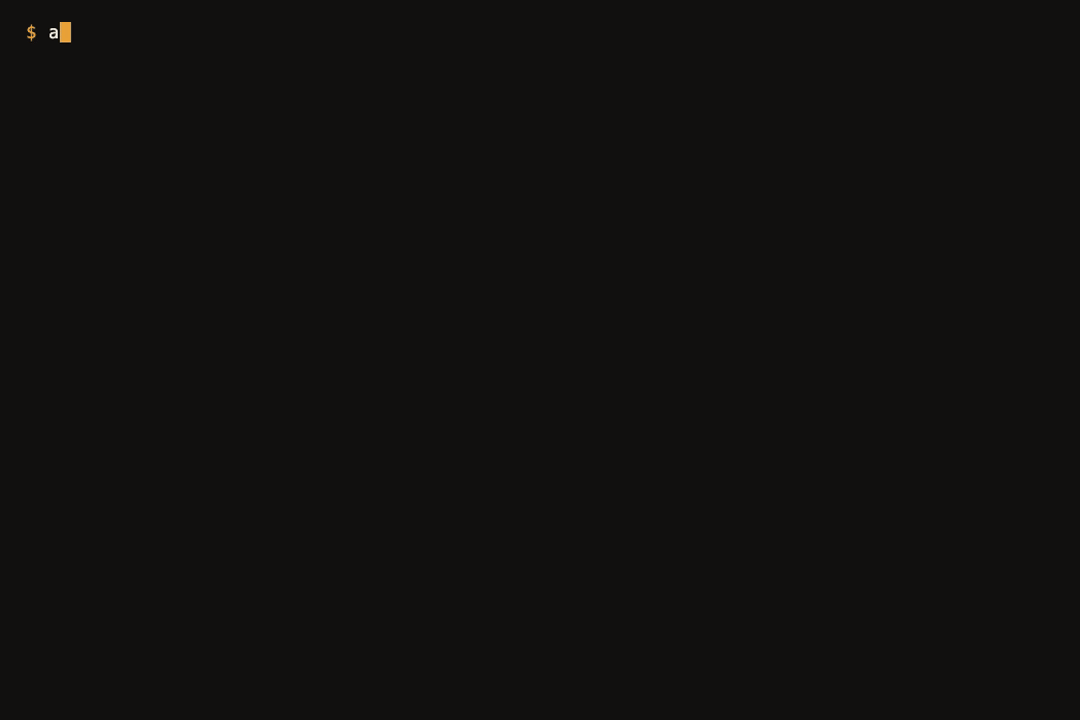

[archstone init reading an OpenAPI document and writing a compiling CDL manifest]

archstone init openapi.yaml --out manifest --company acme --domain catalog

The one answer it never guesses is effect — read, write or irreversible is the difference between looking up a price and charging a card, and no spec says which. Where a response could honestly be read two ways, it asks rather than picking. With --probe it will also make one read-only call to your real backend and record a genuine fixture, so archstone verify has something true to replay later.

The spec in that recording is examples/demo/stays-openapi.yaml, describing the demo backend in this repository — you can run it yourself.

Who is running it

ArtVinci — a custom-framing business — answers customer questions today through a capability compiled by Archstone. Real catalog, real prices computed live by their own backend. See the case study.

Why a compiler, and not just an MCP server

Writing your first MCP server is not the hard part — it is a few hundred lines, and you can do it in an afternoon.

The work is the fifth one. ChatGPT, Gemini and whatever ships next each want the same capability shaped slightly differently, every one of them is a separate integration project, and your API keeps changing underneath all of them at once.

Archstone is not an MCP server. It is a compiler that, in its first release, generates one.

One capability definition (CDL) lowers to a target-agnostic IR; emitters consume the IR. MCP today; REST · GraphQL · SDK tomorrow. Change the protocol and you regenerate — you do not rewrite. Change the backend and the CDL and the generated tool do not move at all.

That is what zero manual integration means: not that the first server is easy, but that the maintenance disappears instead of multiplying.

How it works

capabilities.yaml   →   *.capability.yaml   →   bindings/*.binding.yaml(what the company     (each capability:        (how one capability maps offers — the index)   business shape only)     to a real HTTP endpoint)
        └──────── archstone apply ────────┘        └── archstone serve ──┘             parse → validate → compile → IR          emit MCP tools → agent

You describe capabilities in CDL (Capability Definition Language) — business only, no integration code. Archstone compiles that to a target-agnostic IR, and an emitter turns the IR into tools an AI agent can call. Swap the backend; the CDL and the generated tool do not change.

Capability outputs reference named resources (*.resource.yaml); the compiler resolves them into a typed, described outputSchema, and a binding's response: mapping enforces that shape at every call — a required field missing from the provider's response fails closed (a structured error, never a silent raw pass-through). archstone verify replays a recorded fixture against the live backend on demand and reports a 🟢/🟡/🔴 health status per binding, so contract drift shows up before an agent hits it — naming the fields the provider gained, lost or retyped, not merely reporting that something moved. Bindings whose capability effect is not read are skipped by default (replaying a fixture is a real invocation), and re-included only with --sandbox, an assertion that the backend is a sandbox tenant.

A field your manifest does not name never reaches a model. That is deliberate: your provider's payload very likely carries wholesale rates, commissions or internal ids beside the fields you publish, and a backend deploy adding one must not be a decision about what an assistant can say. archstone apply <dir> --exposure names both sides for each capability — the fields a model is shown, and the ones your backend was recorded returning that it never sees (net, commission, boardType, … for the tourism example). Declaring a new field is a separate, deliberate act — archstone adopt offers each one, asks you to describe it, writes it into your resource and binding, and recompiles before keeping anything. With stdin closed it refuses and writes nothing: it needs a person, which is the point rather than a limitation.

And a field the model invents never reaches your system. The same resource declaration read the other way round: when a model produces business data — extracting a booking from an email, a line item from an invoice — archstone.extractor("tourism.Stay", …) hands it the closed schema and judges what comes back. A missing required field is a violation and the document is withheld whole; an undeclared key is dropped and named; nothing is coerced, defaulted or repaired. One entity declared once, both directions of travel (ADR-0011).

Quick start

From source (this repository):

pnpm install
# Scaffold a manifest from an API you already have (opt-in, read-only, no LLM)pnpm exec tsx packages/cli/src/index.ts init path/to/openapi.yaml --out my-manifest --domain catalog
# Compile a manifest: validate + lower to IR (also warns about what an `irreversible` capability still lacks)pnpm apply examples/manifests/booking
# Build a portable IR artifact (for embedding in your own app)pnpm build examples/manifests/tourism
# Serve it to an AI agent as MCP tools over stdiopnpm serve examples/manifests/tourism
# Serve it as MCP over HTTP (e.g. for Claude API mcp_servers)pnpm serve --http examples/manifests/tourism --token my-bearer-token
# Replay a binding's golden fixture against the live backend; detect driftpnpm verify examples/manifests/tourism
# Replay including write/irreversible capabilities (only for sandbox backends)pnpm verify examples/manifests/tourism --sandbox
# Get structured JSON output for integration with CI pipelines and dashboardspnpm verify examples/manifests/tourism --json

From npm (standalone CLI):

# Install globally or use npxnpm install -g @archstone/cli# ornpx @archstone/cli apply <manifest-dir>
# Then run the same commands:archstone init path/to/openapi.yaml --out my-manifest --domain catalogarchstone apply examples/manifests/bookingarchstone build examples/manifests/tourismarchstone serve examples/manifests/tourismarchstone serve --http examples/manifests/tourism --token my-bearer-tokenarchstone verify examples/manifests/tourismarchstone verify examples/manifests/tourism --json
# Check a manifest against the pre-production checklist — offline, no backend contactedarchstone doctor examples/manifests/tourism
# Declare a field the backend started returning (asks before writing; needs a person)archstone adopt examples/manifests/tourism

Where your CDL lives

Your business's CDL manifest (capabilities.yaml, *.capability.yaml, *.resource.yaml, and bindings/*.binding.yaml) is authored and version-controlled in your own application repository — never inside this Archstone repository or any other Archstone-owned repository.

@archstone/cli is a stateless compiler. It runs locally on your machine or in your own CI pipeline with zero checkout of any Archstone repository required — public or private. Install @archstone/cli from npm; point it at your manifest directory; it compiles to IR and reports the result. That's the entire integration: no cross-repo credentials, no monorepo dependency, no fetch-at-runtime.

Distinguishing "From source" above: the instructions above for exploring Archstone's source code are for contributors building Archstone itself. The real integration path for your business is to install @archstone/cli from npm into your own repository and wire archstone apply/archstone build/archstone serve/archstone verify into your own build system. See the onboarding guide for the full walkthrough.

New here? Start with the onboarding guide — one path for providers (expose your business to agents) and one for contributors (build Archstone).

Embedding Archstone

Rather than running archstone as a separate CLI or MCP server, you can embed the compiled IR directly in your own agent loop. After building a portable IR with archstone build, consumers can use the @archstone/agent SDK (RFC-0008):

import { fromIR, tools, execute } from "@archstone/agent";const archstone = fromIR(compiledIR);
// Get typed tool definitions in your preferred formatconst myTools = archstone.tools("anthropic");// or "openai-chat" (Chat Completions) / "openai-responses" (Responses API) / "gemini" /// "json-schema" — "openai" also works but is a deprecated alias of "openai-chat"
// Invoke capabilities directly — no MCP server process needed// Accepts both raw dotted id and sanitized tool name (as returned by tools())const result = await archstone.execute("tourism.search", { location: "Paris" });// or: await archstone.execute("tourism_search", { location: "Paris" });

For those who want HTTP-based MCP (e.g., to expose an embedded instance via Claude API's mcp_servers), the /mcp subpath provides a mountable Streamable-HTTP handler:

import { mcpHandler } from "@archstone/agent/mcp";const handler = mcpHandler(archstone, { bearerToken: "..." });// Mount on your framework's HTTP router

See packages/agent for full API docs and examples.

Start here

Repository layout

archstone/├── packages/│   ├── schema/│   │   └── schemas/     # JSON Schema — cdl.schema.json validates the language│   ├── compiler/        # compile → IR  (src/ir.ts = the moat: target-agnostic)│   ├── emitter-support/ # IR indexing + semantic-type → JSON-Schema lowering (RFC-0008)│   ├── agent/           # embedded SDK: fromIR(), tools(), execute() (RFC-0008)│   ├── runtime/         # registry + MCP emitter (stdio + HTTP)│   └── cli/             # `apply` / `build` / `serve` / `verify` / `doctor` / `adopt` — wires pipeline├── providers/│   └── rest/            # REST adapter (providers = adapters)├── examples/            # manifests + the Claude demo└── docs/                # rfc/ · adr/ · spec/ · glossary/ · ONBOARDING.md

The compiler never lets apply poke a target directly — it compiles to an IR, and emitters (MCP now; REST · GraphQL · SDK later) consume the IR. That boundary is why the product survives a protocol change.

The iconic file

capabilities.yaml is to Archstone what openapi.yaml is to an API or docker-compose.yaml is to a stack: the one file that declares what a company offers. See the booking example.

What is free, and what we sell

Everything needed to take a CDL manifest and turn it into something an agent can call is Apache-2.0 and stays that way: the language, the compiler, the IR, every emitter, the embedded SDK, and init / apply / build / serve / verify. archstone build and archstone serve never require a network call, an account or a key — vendor a manifest, pin a version, and you can keep compiling and serving it indefinitely with no relationship to us. ArtVinci runs entirely inside this and owes us nothing.

No feature that is free today becomes paid. New commercial value is added alongside the open core, or it is not added.

Both commitments are ratified decisions, not release notes — the reasoning, and the alternatives that were considered and refused, are in ADR-0005. Ranking is covered separately and just as permanently: position in any selection Archstone performs is not purchasable in any form (ADR-0006).

What we sell, when it exists, is the operation of these artifacts over time on our machines: hosted durable audit and retention, managed rate-limit counters, drift monitoring, and multi-tenant hosting for teams who would rather not run a node. The governance mechanisms themselves — policy evaluation, rate limiting, execution audit, model-output validation — ship here, in the open, at every tier.

The language

CDL is 1.0 and frozen: every primitive is Canonical, so a manifest that compiles today compiles against every later CDL 1.x. The normative grammar — what each primitive means, what a processor MUST and MUST NOT do — is docs/cdl-specification.md; the machine contract is cdl.schema.json. Why the grammar looks the way it does — every primitive's justification, and the ones that were rejected — is the Rationale, RFC-0002. Terms are defined in the glossary.

Identity

Archstone never resolves identity — your host does, and hands over an opaque principal. What to wire, what is guaranteed about it, and why there is no SSO/SCIM feature to look for: docs/IDENTITY.md.

Support and versions

Which versions receive fixes, what gets backported, and what stays stable while the packages are pre-1.0 (short answer: CDL and your compiled IR) — see SUPPORT.md. Security reports go through SECURITY.md, never a public issue.

How this project uses generative AI

Archstone is written with substantial AI assistance. It says so here rather than leaving you to infer it from the commit log. The model is Anthropic's Claude — claude-opus-5 at the time of writing — used through Claude Code.

Where it is used: implementation and refactoring across the compiler, emitters, runtime and CLI; tests; documentation and changelog prose.

What is not generated: the decisions. Every structural choice — what enters CDL, what the compiler guarantees, where a boundary sits — is written as an ADR before merge, with the alternatives that were considered and refused, and ratified by a person who is accountable for it. The decisions that constitute commitments to you are published in docs/adr/, so you can read the reasoning instead of taking a claim on trust. A patch nobody can explain does not merge, whatever wrote it.

Provenance: commits carrying generated code name the model in their co-authorship trailer. Contributors are asked to do the same — see CONTRIBUTING.md.

This disclosure exists because the alternative is worse. A compiler asks you to trust its output about things you cannot easily check by hand: that an effect is right, that a field you never declared did not leave your backend. You are entitled to know how it was built before deciding how much of that to trust.

Contributing

See CONTRIBUTING.md and the contributor onboarding. Requires Node 22+ and pnpm 11+; pnpm typecheck && pnpm test should be green before you open a PR.

License

Copyright 2026 NousVigil LLC. Licensed under Apache-2.0; see also NOTICE.

Archstone · schema-first · Capability Platform
