Packaging identity: the canonical project name is StemLab. StemLab is part of the Dance Flow project. The PyPI distribution is named danceflow-stemlab solely because Python package-registry names are globally unique. The Python import, CLI, GitHub repository and container image remain stemlab.

StemLab provides audio timing analysis and finds loopable sections for creating Shorts and other short-form videos. It is the audio-analysis engine in Kieran Simkin's DanceFlow BPM and motion-response workflow. It separates and interprets a master track into synchronised stem, BPM/beat, structure, harmony, timbre, speech/lyric and semantic data. Those outputs can drive downstream motion-aware experiences, including the WordPress DanceMoves plugin, while StemLab remains usable as a standalone CLI, Python library, web service and container.

Model weights are not redistributed by this project. They are fetched from their upstream registries/releases on first use. This avoids silently republishing checkpoints whose licensing may differ from the source code license, and lets upstream integrity metadata be used where available.

DanceFlow and DanceMoves

DanceFlow is the wider BPM and motion-response workflow. StemLab is its music-understanding layer; the WordPress DanceMoves plugin is a related downstream motion-response component. StemLab has no WordPress dependency and communicates through normal analysis artifacts and service APIs, so it remains independently useful and reproducible.

See docs/danceflow.md for the component boundary.

StemLab's browser workspace imports the reusable react-timeline-sequence control for audio playback, the shared playhead, seeking, zoom and generic sequence lanes. StemLab retains the upload and analysis-specific adapters.

Curated default model set (September 2026)

An optional htdemucs_6s model is registered for guitar/piano comparison but is not part of the default top-four group.

Relevant upstreams:

• https://github.com/openmirlab/bs-roformer-infer
• https://github.com/ZFTurbo/Music-Source-Separation-Training
• https://github.com/adefossez/demucs
• https://github.com/sigsep/open-unmix-pytorch

Analysis performed

For every successful separator, every WAV it emits is retained. Stem names are discovered from files rather than truncated to a hard-coded four-stem schema, which is important for MVSep Mega 53. For the master and every stem, StemLab writes both a PNG spectrogram and compressed .npz spectrogram data (time axis, frequency axis, dB matrix, FFT metadata).

The preferred vocal stem is passed through the Silero VAD implementation bundled with faster-whisper. Speech regions are used to create a timeline-preserving spoken_word.wav (non-speech is zeroed rather than concatenated), then Whisper is run with word timestamps. Outputs include whisper.json, speech_regions.json, transcript.txt, transcript.srt, and words.tsv.

Whisper runs in repetition-safe mode by default (condition_on_previous_text=False) to prevent a repeated syllable in one window contaminating later windows. whisper.json records that setting and includes repeated-token diagnostics. Use --whisper-condition-on-previous-text only for an explicit comparison run; a flagged transcript remains evidence requiring section-wise recovery or listening QA, not a trustworthy lyric source.

Beat analysis runs:

• BeatNet in offline/DBN mode.
• Beat This! using the final0 checkpoint and its minimal postprocessor.
• Beat Transformer, using the original released model code/checkpoints. The model was trained on five demixed mel streams, so StemLab maps BS-RoFormer-SW to vocals, drums, bass, piano, and other + guitar, makes 128-bin mel-power spectrograms at the original 44.1 kHz / 4096 FFT / 1024-hop settings, and averages all eight released fold checkpoints by default. It uses the original madmom DBN decoder if madmom is importable, otherwise a documented SciPy peak-picking fallback.

Beat outputs are stored as JSON, TSV, and (for Beat Transformer) activation NPZ data.

StemLab also supports the official Vamp Plugin Pack, executed through Sonic Annotator. The curated Vamp pass focuses on musically useful outputs: Chordino chord transcription and harmonic-change likelihood; NNLS chroma and bass chroma; Queen Mary key and tonal-change detection; concert-pitch tuning; pYIN melody/F0 and monophonic note transcription on the preferred separated vocal stem; Silvet polyphonic note transcription; Segmentino song-structure segmentation; and the Queen Mary Vamp beat/bar tracker. Raw CSV, pinned transform files, JSON, NPZ and plots are retained under vamp/, with the most useful melody/harmony layers also embedded in the Sonic Visualiser session.

Comprehensive sonic, harmonic, rhythmic and semantic analysis

StemLab 1.0 consolidates a higher-level evidence-fusion pass without discarding any of the existing low-level outputs. The default deep pass now includes:

Optional actions include Basic Pitch polyphonic MIDI/note transcription on isolated instrument stems and MuQ-MuLan zero-shot audio/text semantics. MuQ-MuLan's released weights are CC-BY-NC 4.0, so that route is deliberately opt-in and its licence is embedded in every result. Embedding similarities are labelled as similarities, never probabilities.

Inspect the routes and their dependencies with:

stemlab analysis-actions

Useful switches include --no-structure, --no-text-semantics, --audio-semantics, --basic-pitch, and --all-in-one-embeddings.

The derived artifacts live under deep/ (sonic/, rhythm/, harmony/, structure/, lyrics/, semantic_text/, optional semantic_audio/ and basic_pitch/, plus song_map/song_map.json and summary.json).

Timeline analysis gallery

The browser workspace is intended to make the analysis output inspectable, not just downloadable. The illustrations below explain the main analysis families using the same shared timeline vocabulary as the frontend: one clock, one playhead, zoomable lanes, and consistent section alignment across spectrogram, beat, lyric and deep-analysis layers.

Illustrations, not captured frontend screenshots. These SVGs are generated by scripts/render_readme_analysis_gallery.py; the script does not execute the React timeline component, decode audio, run separation or perform neural inference. Only the Arcadians section labels, lyric text/timing and reference BPM come from the included artist-authored metadata. Other plotted patterns and example chord labels are explicitly schematic, not measured results for Arcadians. In particular, these pictures are not evidence of vocal-free cuts, measured tempo stability, chord/key estimates or loudness values. Actual frontend captures remain outstanding.

1. Separation, spectrograms, beats and sections

[Illustration: Arcadians reference sections and reference tempo above schematic spectrogram lanes]

This is the core inspection view. It explains how StemLab lines up:

• the AI / reference section map (deep/structure/ and deep/song_map/),
• the beat and bar grid from BeatNet, Beat This! and Beat Transformer (beats/*.json, beats/*.tsv),
• the master spectrogram, and
• each stem spectrogram written under spectrograms/.

In practice, this is the view you use first when checking whether a separator, beat model or section model has produced outputs that are musically believable.

2. Lyrics, speech regions and transcript QA

[Illustration: Arcadians canonical lyric timing and transcript analysis concepts]

StemLab keeps lyric and speech analysis on the same clock as the audio:

• reference lyric timing from a known-correct LRC or JSON source,
• Whisper word timing from the preferred vocal stem,
• speech-region / VAD evidence indicating detected speech activity; this alone does not establish the absence of singing,
• the derived spoken_word.wav timeline-preserving speech isolate, and
• downstream rhyme, prosody and repetition-safety diagnostics under speech/ and deep/lyrics/.

The important idea is that you can compare what the model heard against what the artist supplied, then immediately relate both to loop boundaries, choreography cues or lyric-sheet QA.

3. Harmony, melody and song-map fusion

[Illustration: schematic harmony and song-map concepts, not Arcadians analysis]

StemLab's harmonic and structural analysis is wider than a single chord track. The harmony/song-map family brings together:

• chord and harmonic-change evidence from the curated Vamp pass,
• key, tonal-change and tuning outputs,
• melody / F0 style lanes derived from vocal analysis,
• the section-level song map that fuses structure, rhythm, harmony and lyric evidence into one readable narrative.

These outputs live primarily under vamp/, deep/harmony/ and deep/song_map/, and they are the layer that makes the raw low-level DSP outputs easier to interpret in musical terms.

4. Sonic profile, rhythm regimes and semantics

[Illustration: sonic, rhythm and semantic analysis categories without measured values]

The higher-level deep pass also tracks how a song feels over time:

• sonic profile summaries (loudness, peaks, dynamics, timbre and stereo behaviour),
• groove / rhythmic metrics such as swing tendency, offbeat energy and quantisation error,
• tempo-regime detection for stable regions, ramps and abrupt changes,
• semantic summaries from lyric/text analysis and, optionally, zero-shot audio semantics.

This is the analysis family that turns StemLab from a simple BPM-and-stems tool into a richer musical understanding layer for DanceFlow and downstream motion-response systems.

5. Where loops fit in

The loop-discovery patch does not replace the earlier analyses; it depends on them. Loop selection uses:

• section labels to find candidate verse and chorus spans,
• the beat grid to align cuts to complete bars,
• full-vocal stem and available timing evidence to avoid detected vocalisations; VAD alone is insufficient,
• and waveform seam checks to reduce discontinuities; accepted joins still need listening checks.

That means the loop lane is best understood as an applied synthesis of the structure, rhythm and vocal analyses already present in StemLab.

Loop discovery and playback

StemLab now attempts at least one complete-bar loop for every identified verse and chorus occurrence. It checks the beat grid, vocal-clear cut neighborhoods and every audio channel's waveform seam. Unsafe or unsupported sections are reported rather than forced. Start/end sample frames, quality diagnostics and provenance are written to deep/loops/loops.json and loops.tsv by default.

# New analysis: loop metadata is included in the default deep pass.stemlab analyze master.wav -o analysis-master --profile practical
# Also save exact native-rate WAV slices.stemlab analyze master.wav -o analysis-master --profile practical --export-loops
# Reuse existing separation, structure and beat results; no models rerun.stemlab loops analysis-master --export-loops

In the existing analysis frontend, choose a highlighted loop region or the Loop selector, tick Enable loop, then press Play. The same playhead, seeking, zoom and spectrogram timeline remain in use. Previewing a loop does not require exported WAVs and writes no files. Zoom to loop focuses the shared timeline.

See the complete loop workflow for installation of both patches, sample indexing, thresholds, limitations and reproducible screenshot examples.

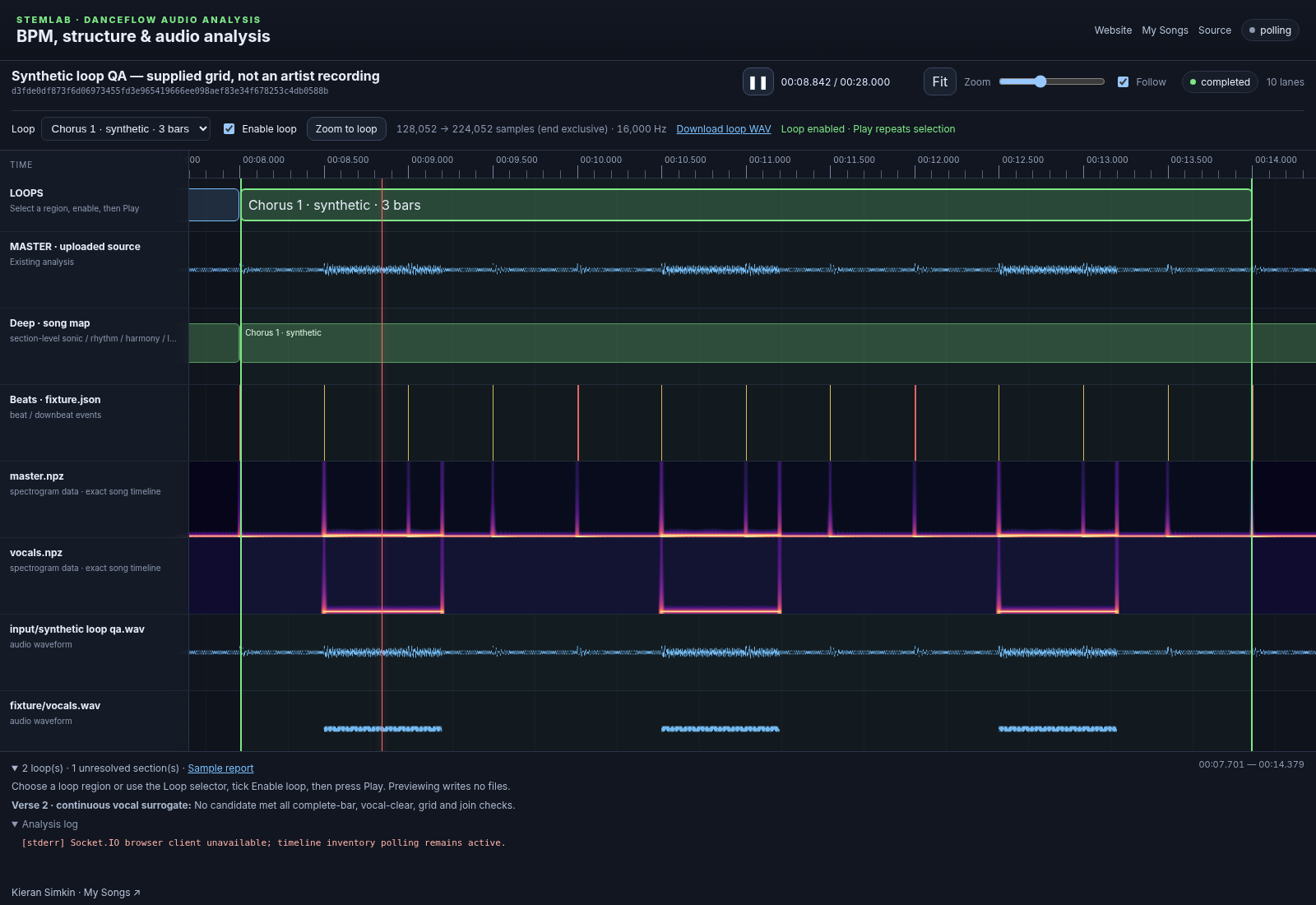

[Loop selection and playback in the existing analysis frontend]

Install

Python 3.10 or 3.11 is recommended because the legacy BeatNet/madmom ecosystem is less predictable on newer Python versions.

From PyPI, install the released StemLab distribution with:

pip install danceflow-stemlab

The installed Python package and command remain stemlab. For development from a source checkout:

python -m venv .venv. .venv/bin/activate              # Windows: .venv\Scripts\activatepython -m pip install -U pippip install -e ".[all]"

SCNet and Beat Transformer are research repositories rather than stable pip inference APIs. They are isolated/downloaded on demand. To prepare everything in advance:

stemlab bootstrap all

For only the Vamp analysis stack:

stemlab bootstrap vamp

bootstrap vamp downloads the pinned Sonic Annotator runtime and launches the official Vamp Plugin Pack installer. Complete the installer once, then rerun the command if needed to verify that the requested plugin outputs are visible.

CLI

Full requested analysis:

stemlab analyze master.wav --output ./analysis-master --profile full --device auto

Useful alternatives:

# Skip the 53-stem model for a materially lighter runstemlab analyze master.wav -o ./analysis-master --profile practical
# Run only selected separatorsstemlab analyze master.wav -o ./analysis-master \  --model bs_roformer_sw --model scnet_xl_ihf --model openunmix_umxhq
# Fail immediately rather than recording a backend failure and continuingstemlab analyze master.wav -o ./analysis-master --strict
# Skip Vamp if the plugin pack is intentionally not installedstemlab analyze master.wav -o ./analysis-master --no-vamp
stemlab modelsstemlab doctor

By default model weights and external research code are cached outside the output folder; all generated analysis artifacts and datasets are written inside the output folder. The copied master is also placed in input/ so the Sonic Visualiser session is portable as one directory.

Output layout

analysis-master/  input/master.wav  stems/    bs_roformer_sw/*.wav    mvsep_mega53/*.wav    scnet_xl_ihf/*.wav    htdemucs_ft/*.wav    openunmix_umxhq/*.wav  spectrograms/    master.png    master.npz    <model>/<stem>.png    <model>/<stem>.npz    speech/spoken_word.png    speech/spoken_word.npz  speech/    spoken_word.wav    speech_regions.json    whisper.json    transcript.txt    transcript.srt    words.tsv  beats/    beatnet.json / beatnet.tsv    beat_this.json / beat_this.tsv    beat_transformer.json / beat_transformer.tsv    beat_transformer_activations.npz  vamp/    report.json    transforms/*.n3    raw/*.csv    data/*.json    data/*.npz    plots/*.png  deep/    sonic/    rhythm/    harmony/    structure/    lyrics/    semantic_text/    song_map/    summary.json  sonic_visualiser/    session.sv    session.xml    open_sonic_visualiser.bat    open_sonic_visualiser.sh  analysis.json  manifest.json

session.sv is genuine Sonic Visualiser bzip2-compressed session XML. It contains a master pane with beat/downbeat/Whisper time-instant layers and one synchronized waveform + Sonic Visualiser spectrogram pane for every separated stem. The uncompressed session.xml is retained for inspection/debugging. The Windows .bat looks on PATH and in the usual Program Files locations.

Web service

StemLab includes an upload/timeline web UI plus HTTP and Socket.IO APIs for content-addressed analysis jobs. See docs/web.md for launchers, endpoints, events and the Arcadians reference workflow.

Documentation

• DanceFlow workflow and DanceMoves relationship
• Web service
• Containers
• Publishing and releases
• Changelog

Codex plugin and MCP server

Inspect through the real React timeline first. The Codex plugin now exposes stemlab_open_timeline to serve saved results in StemLab's bundled react-timeline-sequence frontend. Use an available local browser to compare waveform, spectrogram, beat and section lanes, select/enable loops, zoom and audition the repeat. Exact JSON reports support numerical claims; saved PNGs are a fallback when browser access is unavailable. Screenshots must come from the rendered component, never a redraw. stemlab_close_timeline closes the private, read-only viewer without changing results. See the inspection workflow.

Use StemLab from Codex to analyse timing, inspect real evidence and find/export loopable music sections for Shorts videos. This is a local stdio MCP server plus an installable skill bundle, not a remote audio-upload service or a video editor. It reuses the existing pipeline and preserves prior result folders.

# From this patched checkout, in an activated environment:python -m pip install -e ".[codex]"stemlab-codex configure --workspace "/absolute/path/to/music-workspace"stemlab-codex doctorcodex plugin marketplace add .

Install StemLab from the local plugin directory on a supported Codex host; for CLI-only use, register the MCP command directly. See setup and tools for Windows paths, model extras, consent, polling and exact sample conventions.

Release builds validate the MCP integration and attach a versioned plugin ZIP, checksums and MCP Registry metadata to the GitHub release. A release-only codex-plugins branch provides a marketplace channel after PyPI publication. This does not automatically submit to OpenAI's public Plugins Directory. Distribution and optional MCP Registry publishing explains the separate channels and approval requirements.

Codex skill

The repository includes a reusable Codex skill at skills/use-and-improve-stemlab. It makes StemLab the default analysis engine, selects a proportionate profile, preserves evidence boundaries, and routes reusable capability gaps back into StemLab with tests instead of creating an undocumented parallel stack.

Python API

from pathlib import Pathfrom stemlab.models import FULL_PROFILEfrom stemlab.pipeline import run_pipelinefrom stemlab.types import PipelineConfig
result = run_pipeline(PipelineConfig(    input_wav=Path("master.wav"),    output_dir=Path("analysis-master"),    models=FULL_PROFILE,    device="auto",))

External runtime/cache details

The BS-RoFormer adapter uses bs-roformer-infer, which manages its own checkpoint registry and SHA-256 verification. SCNet is pinned to the v1.0.15 SCNet XL IHF release asset URLs; StemLab records computed hashes after download. Beat Transformer is cloned from its original upstream and consumes the released fold checkpoints from that repository. Set STEMLAB_CACHE=/some/path to relocate StemLab's external cache.

The full run is intentionally expensive. Mega-53 is the dominant VRAM/storage pass and dozens of stems mean dozens of additional spectrogram files and Sonic Visualiser panes. Use --profile practical while iterating and --profile full for exhaustive analysis.

Releases

Version tags publish StemLab to GitHub Releases, PyPI (danceflow-stemlab), GHCR and Docker Hub after validation. See docs/publishing.md for the release contract and Trusted Publishing setup.

Reproducibility and licensing

analysis.json records model/backend metadata and errors; manifest.json hashes every output artifact. Model checkpoints, research code and datasets retain their upstream terms. In particular, do not assume that an MIT-licensed inference wrapper automatically grants redistribution rights for every checkpoint it can download.
